Galaxis

Measurements:

  • Overall Length: 8.5"

  • Handle Length: 4.75"

  • Blade Length: 3.75"

  • Weight: 4.6 oz

Materials:

  • Handle Material: 6-4 Titanium

  • Blade Steel: Bohler M390 @ 61.5-62.5 RC

  • Pivot Pin and Screw:  6-4 Titanium

  • Bushing: Grease Grooved Hardened Stainless

  • Thrust Washers: Phosphor Bronze

  • Thumblugs: 6-4 Titanium

Galaxis 4.jpg

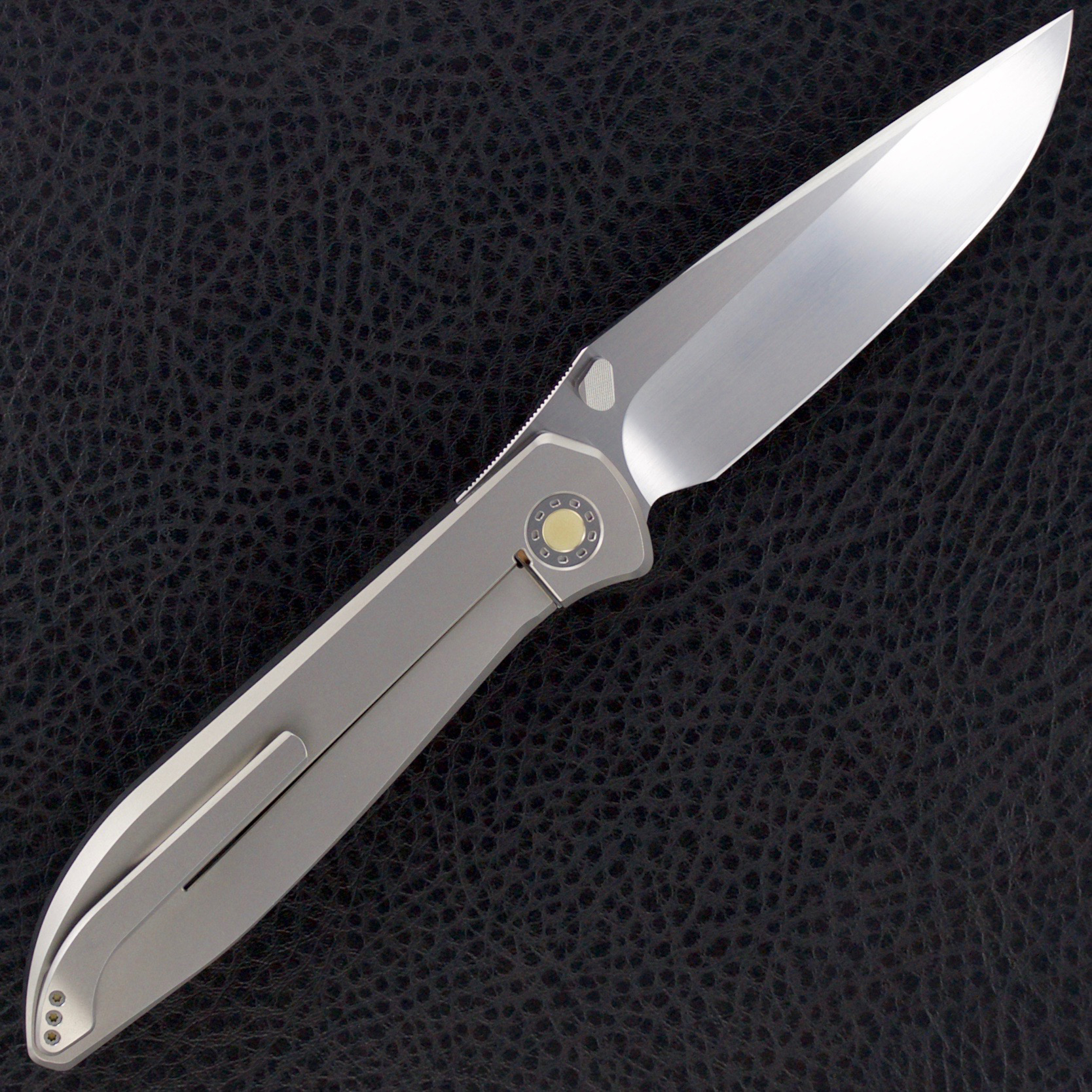

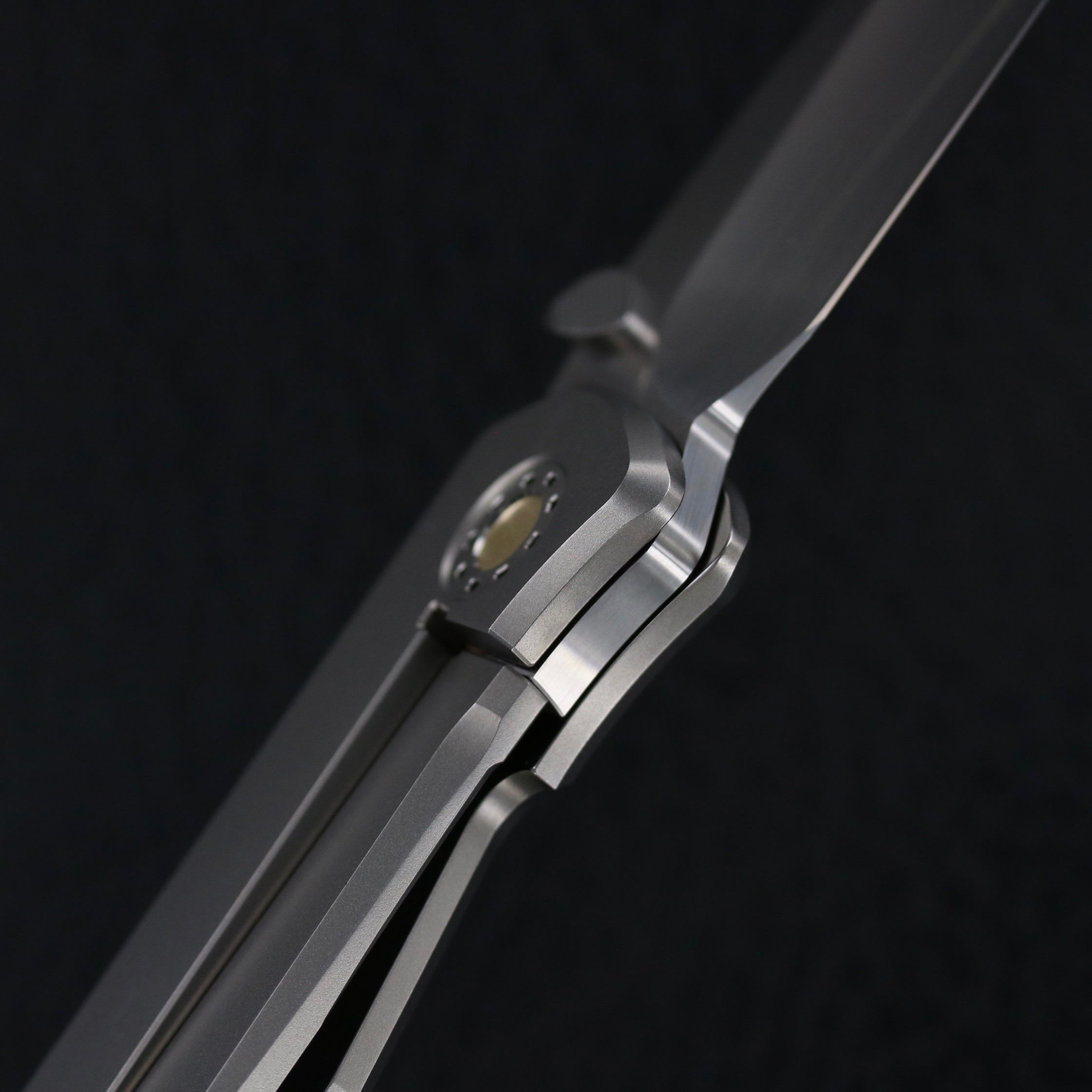

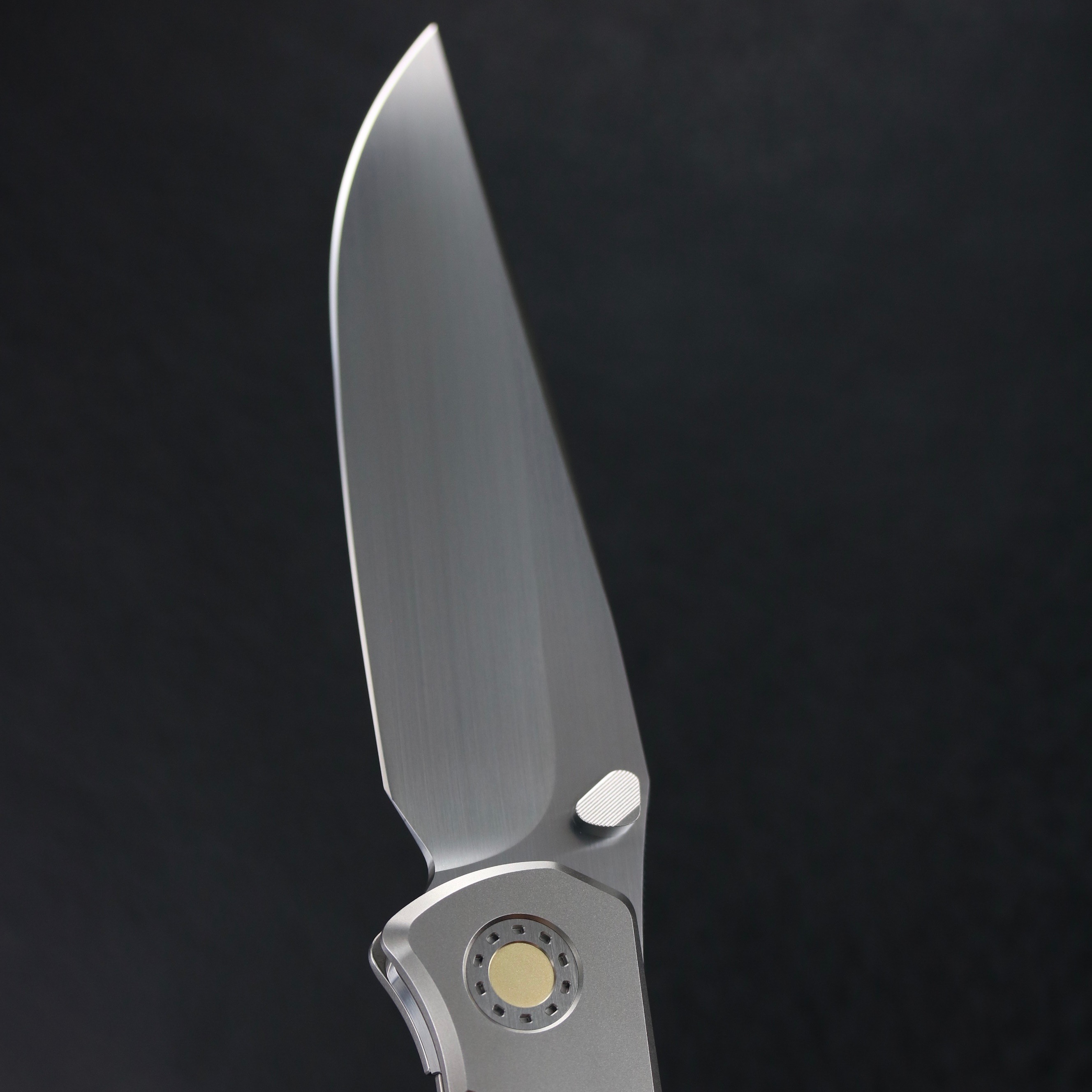

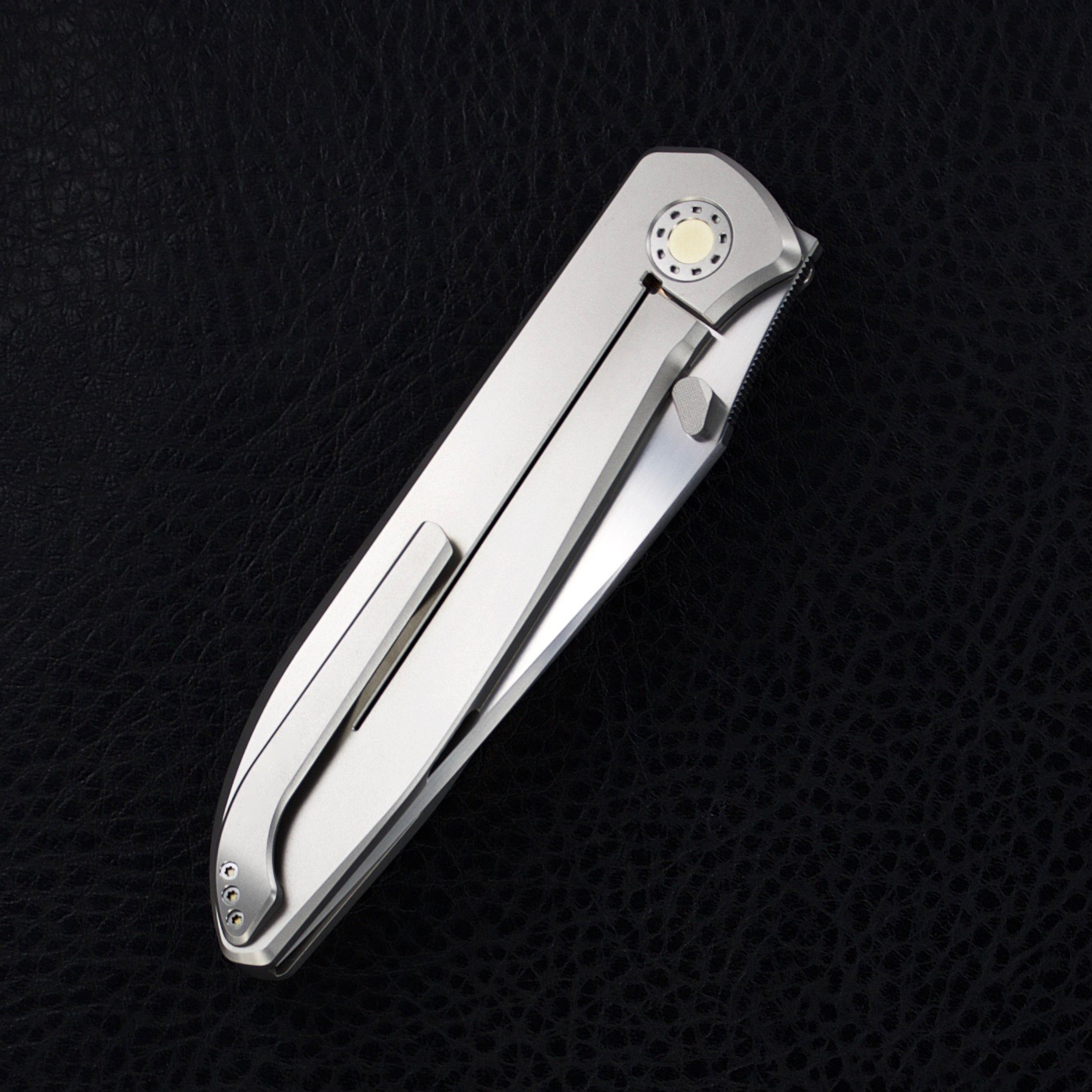

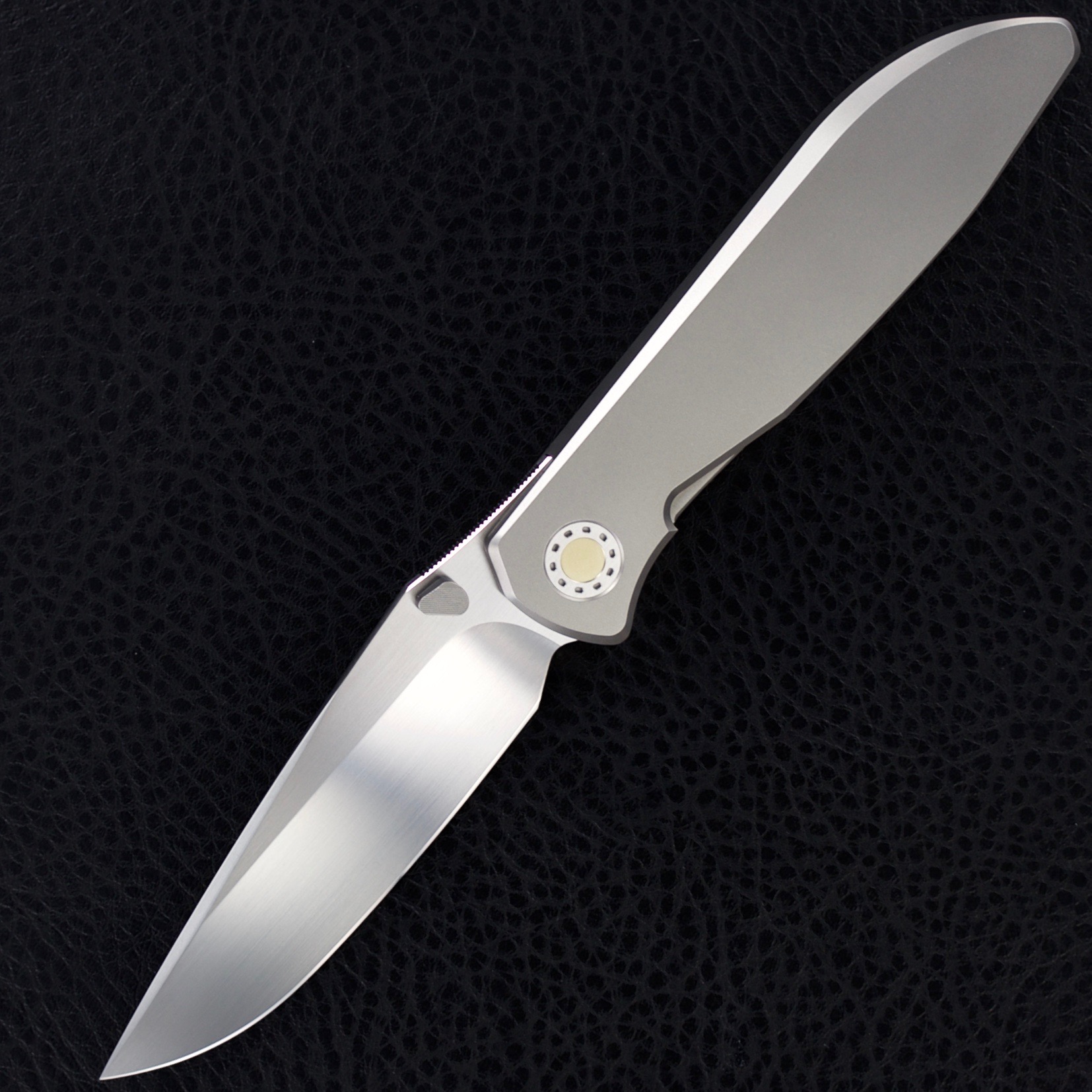

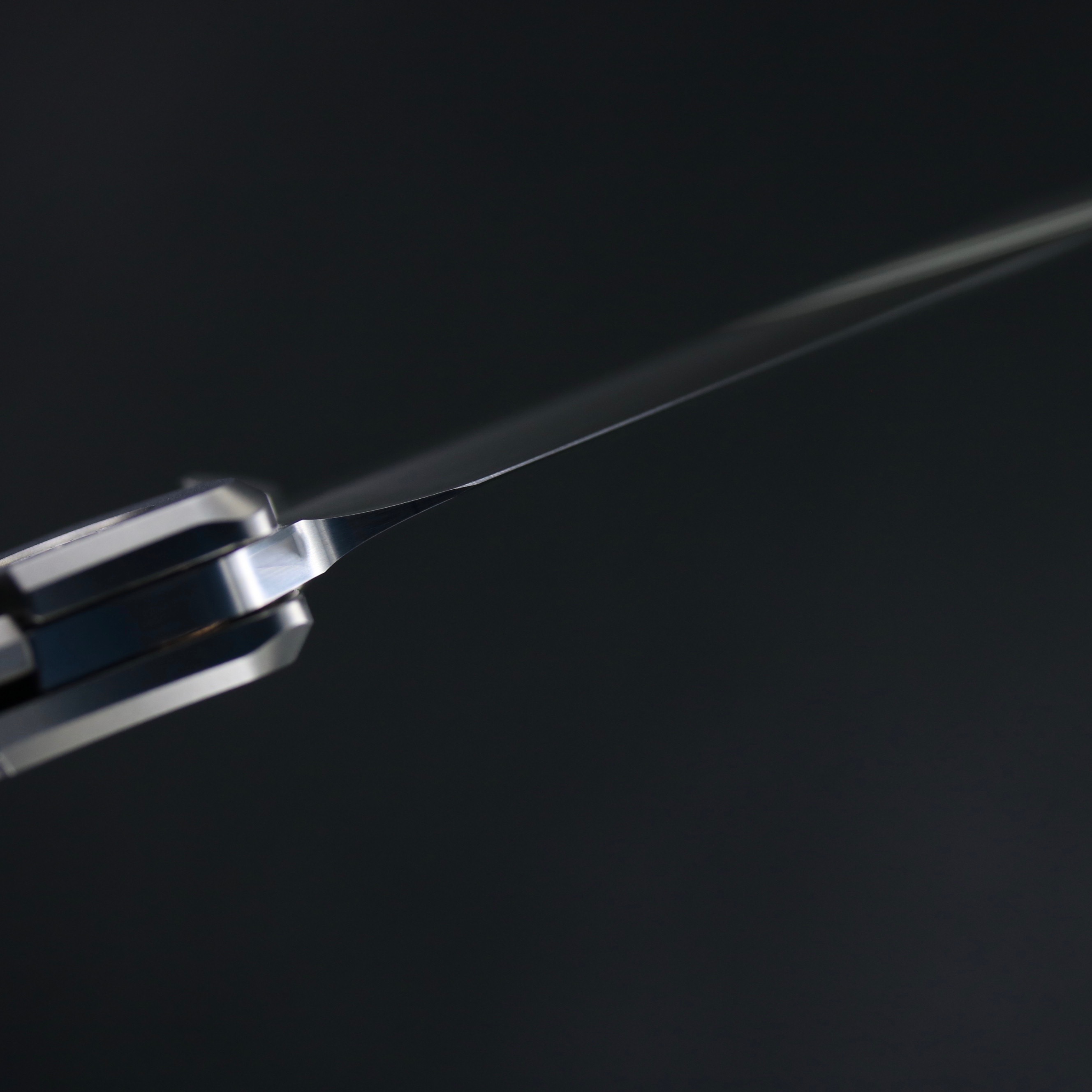

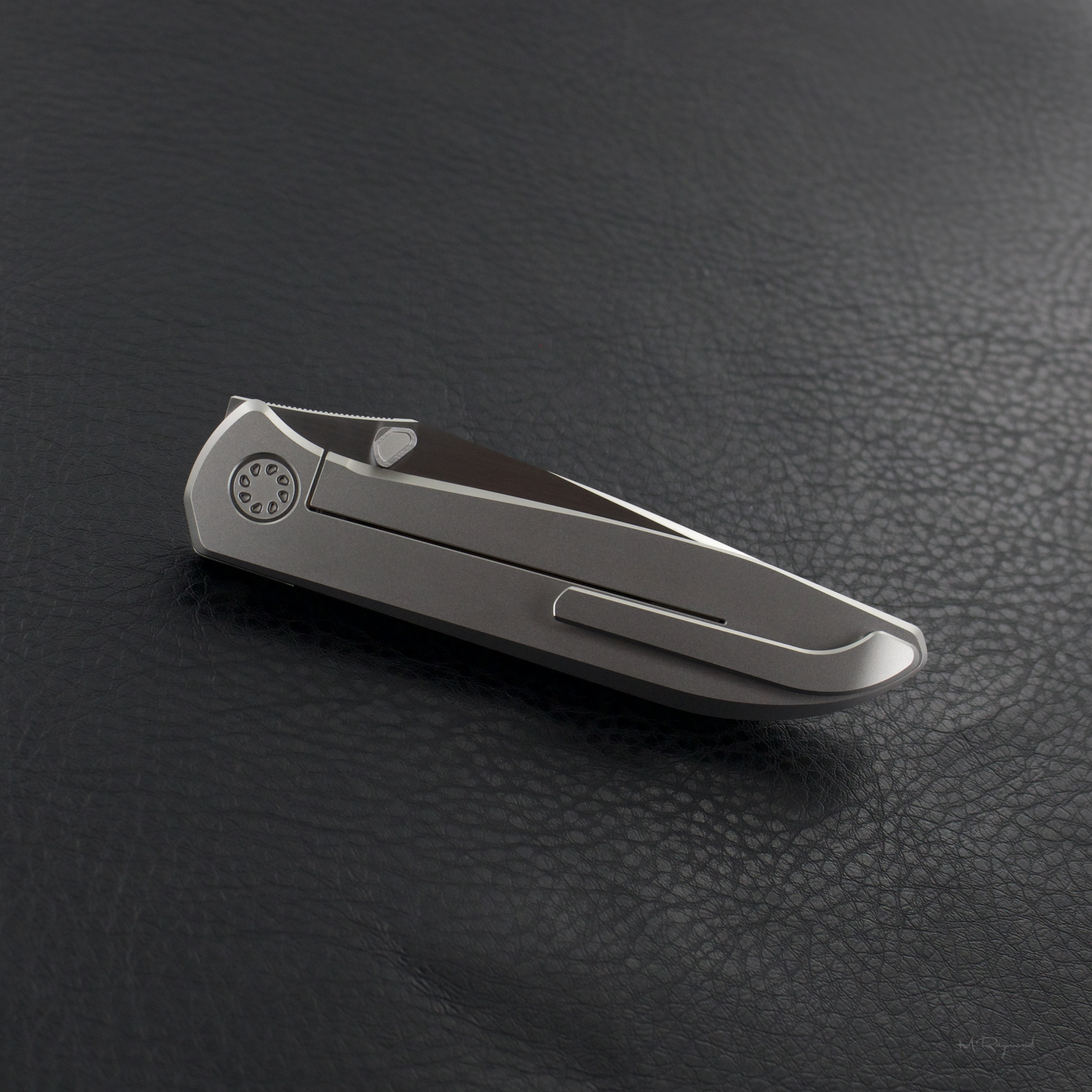

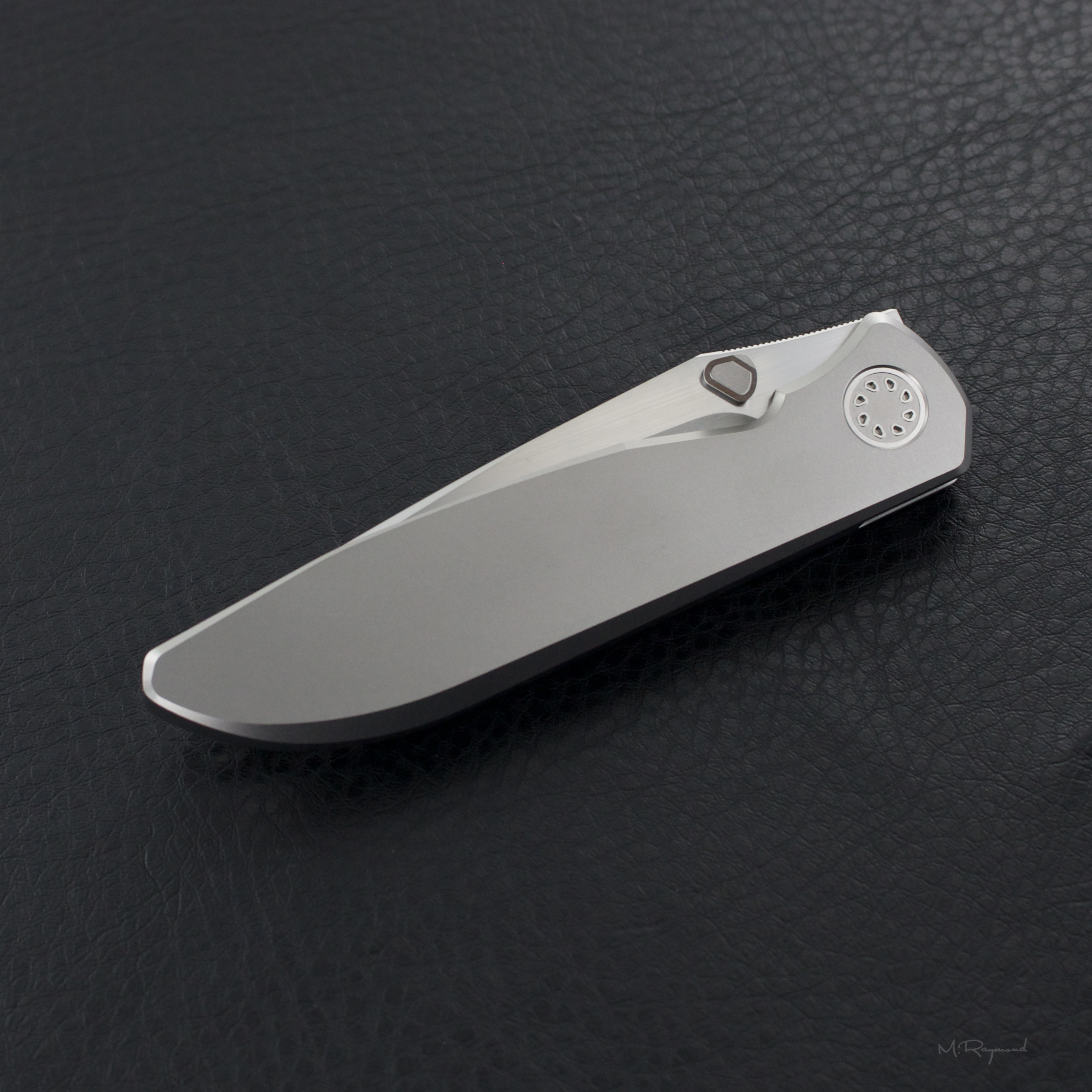

The Galaxis is our third and largest model. It features mirrored dual thumblugs, and a frame profile that consists of arcs and straight lines. Like all our knives this is a true integral frame with a strong and durable bushing / washer pivot system. The blades are heat treated utilizing a rapid oil quench technique, are deep cryo treated, and Rockwell tested. This is all done in small batches to ensure accuracy. The 3D pocket clip requires 5 different machining configurations and is precision fit into a milled recess in the handle, adding strength and uniqueness.  Each knife comes with a custom pivot tool so owners can service their knife.  Everything but the ceramic detent ball phosphor bronze washers are made in-house from raw materials.

As my knife making techniques and skills have evolved I am working multiple parts to extremely small tolerances (low ten-thousands of an inch, or even further) to produce precision action in a robust design with attention to detail that will stand the test of time, which is very important to me.
